| Product | Medical device |
| Technology | CNC plastic machining, sheet metal fabrication |
| Material | PC V0, ABS, Stainless Steel, Steel |
| Finish | Alcohol-resistant painting, silk-screen printing, EMI painting, simple polishing |
| Timeline | 25 days |
| Quantity | 6 sets |
About our client

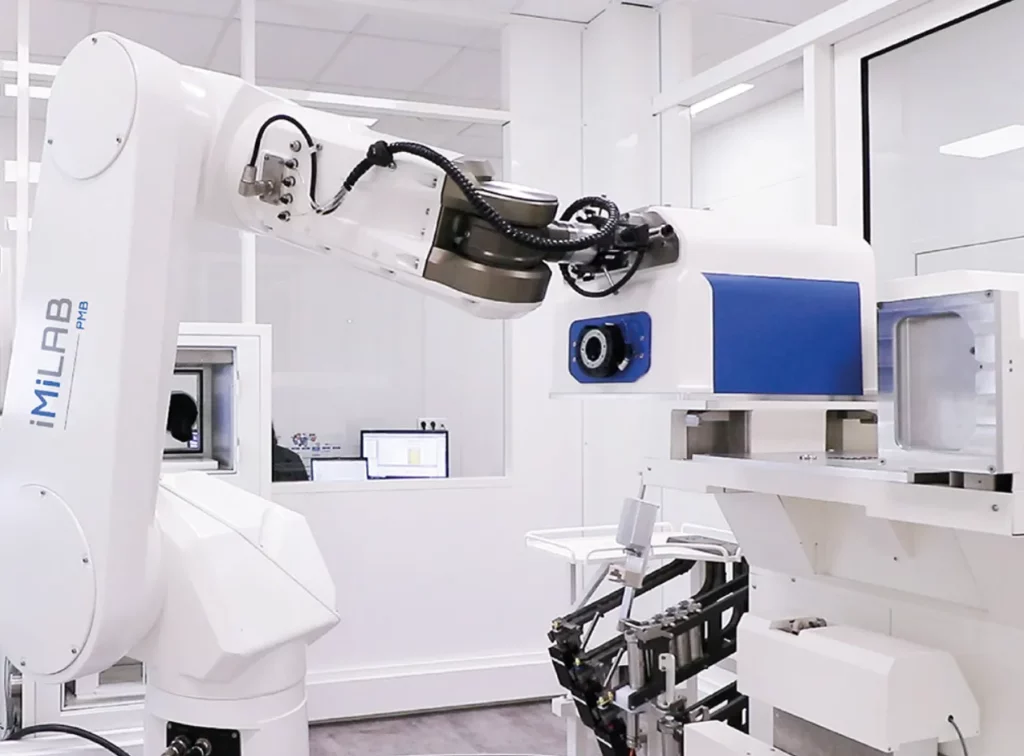

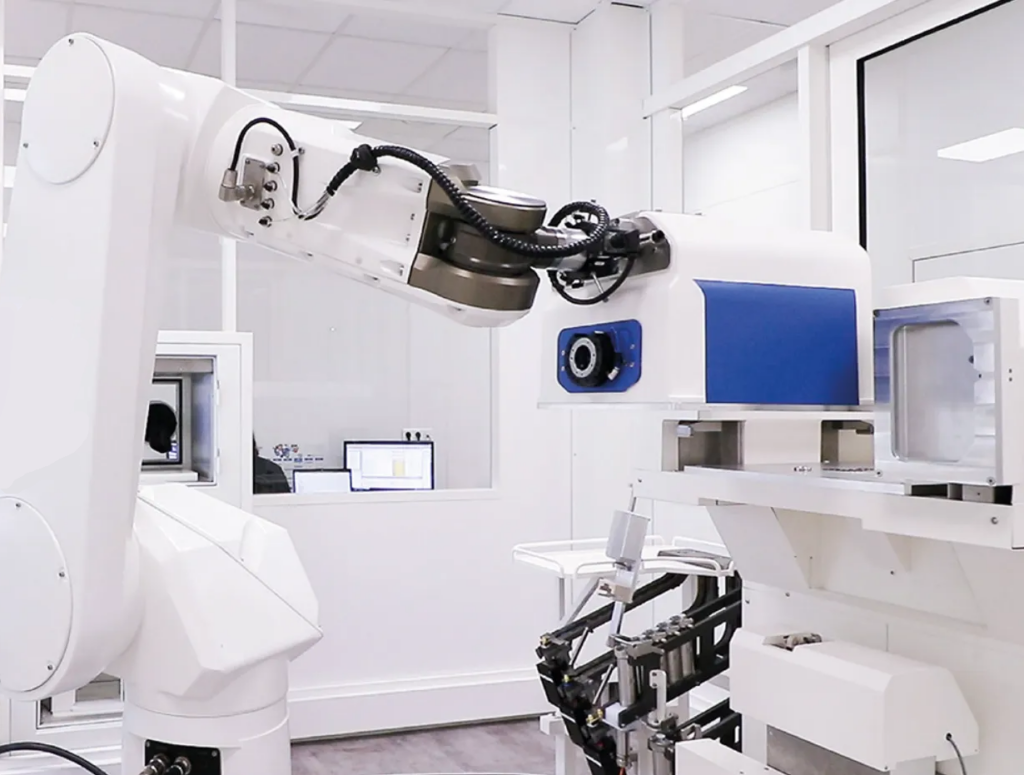

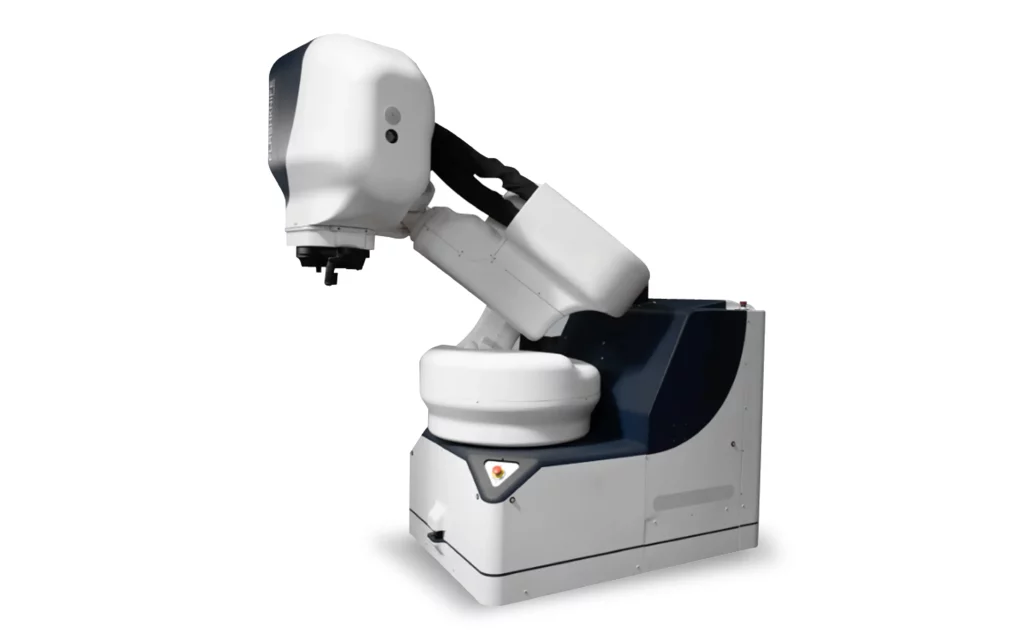

Our client is a French company renowned for its expertise in designing innovative medical systems. They specialize in complex sub-assemblies, particle accelerators, and cutting-edge medical systems. Particularly recognized for their radiotherapy solutions, their technology uses very high-energy electrons to target deep-seated cancers.
Technological challenges

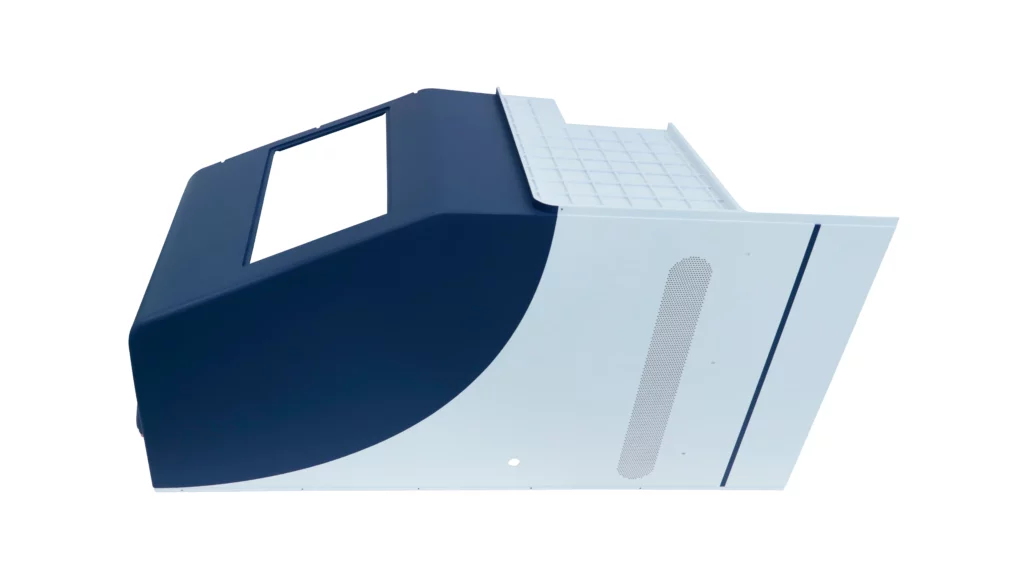

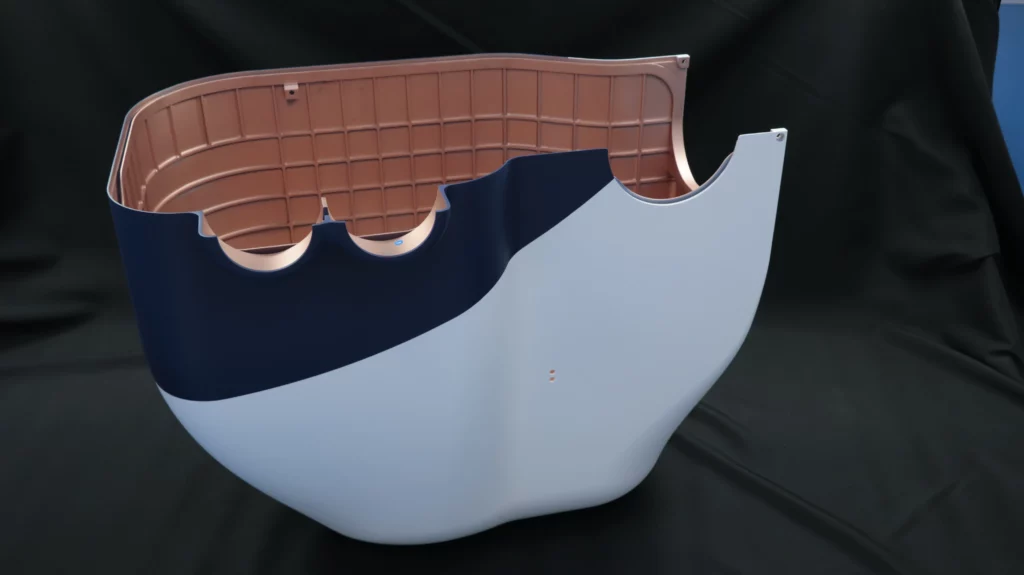

This project involved creating custom enclosures for a medical machine, consisting of 46 distinct parts made of PC V0 plastic, ABS, and CNC-machined stainless steel. The main challenges included:
Large size and precision assembly:
The largest part measured 1.7 meters long, 1.1 meters wide, and 1.4 meters high. Achieving strict assembly precision while avoiding deformation of large parts and ensuring accurate component fits posed a major technical challenge.

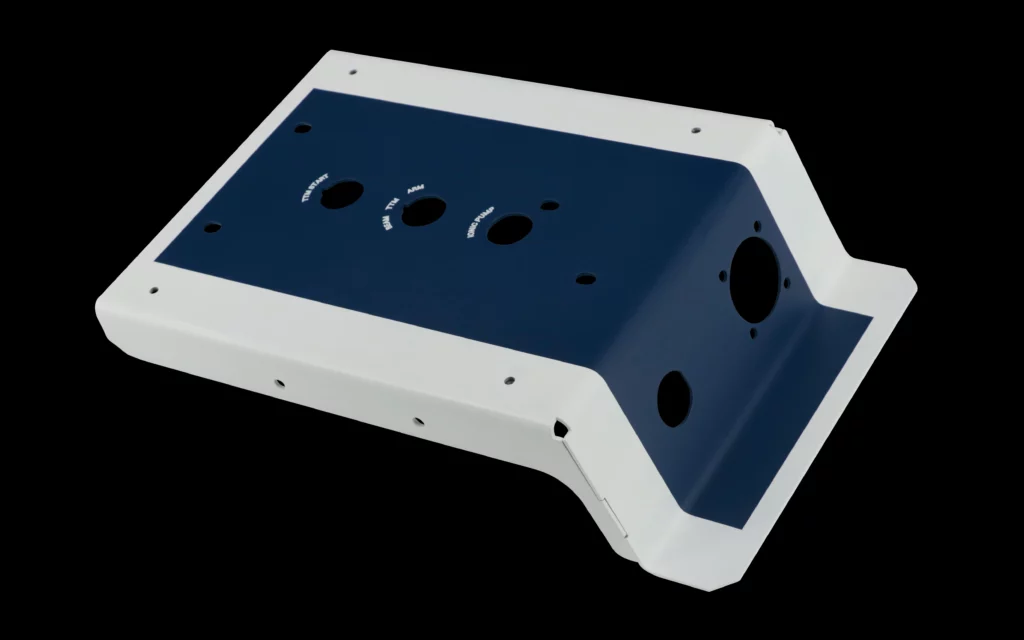

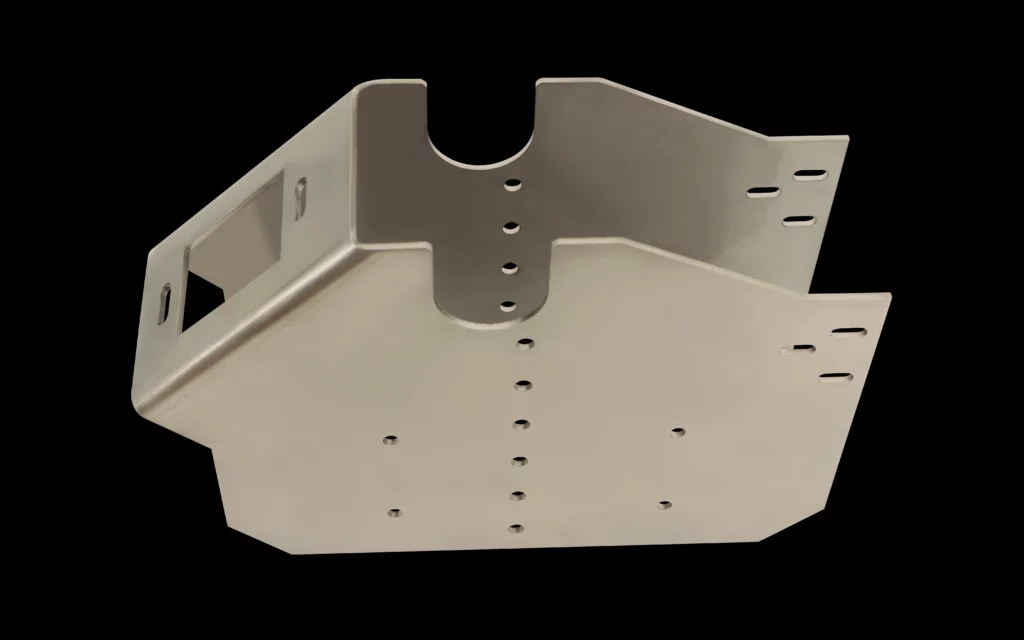

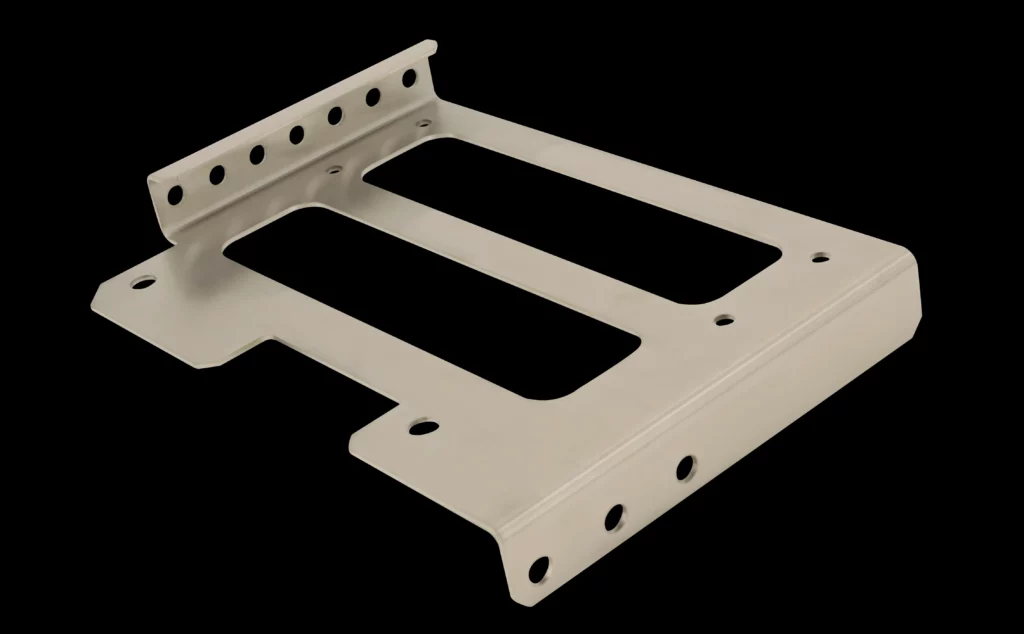

Custom manufacturing and assembly complexity:
Due to the size of the pieces, it was impossible to manufacture them in a single block. Therefore, the pieces were cut, assembled, and bonded. This custom casing process required advanced expertise to ensure structural integrity and maintain the strength of the different sections.

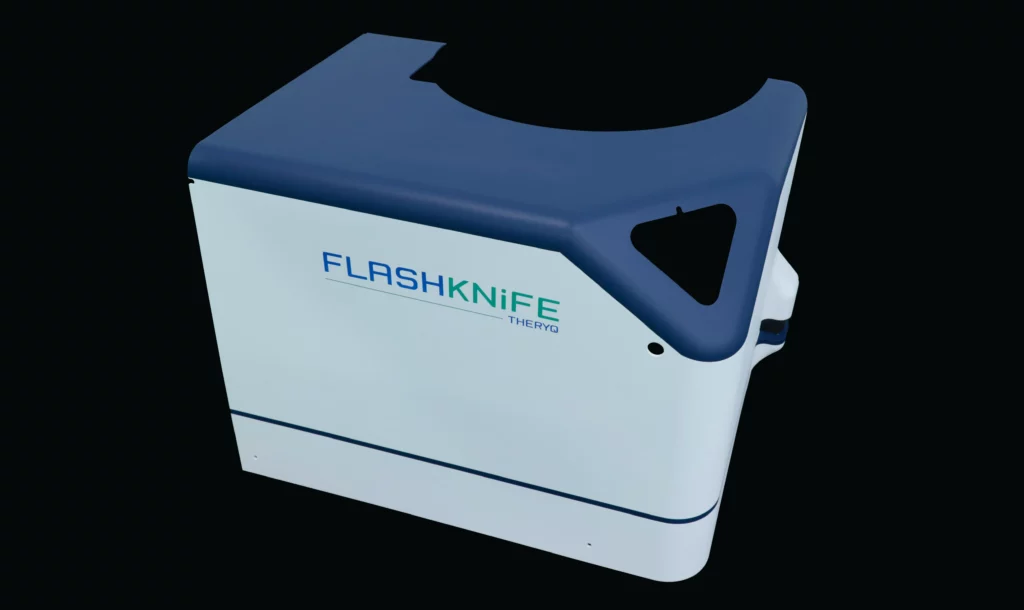

Finish and color consistency:
Finishing and logo silk-screen printing were critical for the client. Color consistency across all parts had to be guaranteed. Pantone reference boards were used to precisely control paint ratios and avoid any color variation.
High-precision quality control:
Over 120 pages of testing documentation were produced to validate compliance with the client’s 2D drawings. Rigorous dimensional, visual, and assembly inspections were performed to ensure a flawless final product.
Solutions Provided by Protolis
Thanks to our ISO 13485-certified expertise (medical device standard), Protolis successfully met these challenges by delivering tailor-made solutions for the equipment enclosures. We used technologies such as CNC machining and sheet metal fabrication to produce high-quality plastic housings, delivered within the required timeline.
Conclusion
Protolis is a trusted partner for medical device manufacturers, offering customized solutions for enclosures and covers that meet strict quality and performance standards. Through our technical know-how and efficient production processes, we support our clients throughout the development journey, from design to production, ensuring flawless execution at every stage.
